NE153QDM-NZ1 NEW 15.3''IPS QHD 2560*1600 240HZ Laptop LCD Screen Panel

NE53QDM-NZ1 NEW 15.3''IPS QHD 2560*1600 240HZ Laptop LCD Screen Panel
Size: 15.3inches(called 15'' too)
Connector Dater: 40pins EDP Conector
Resolution: 2560*1600QHD
Surface: Matte
Outline Size: 3334.47±0.3 (H)*214.92±0.5(V)(W/O PCB)*2.6 (Max)
334.47±0.3(H)*214.92±0.5(V) (W/PCB)*4.6(Max)
Display Area: 329.472(H) ×205.920(V)
Contrast Ratio: 1200:1 (Typ.) (TM)
Brightness: 400cd/m2 (Typ.)
Color: 10bit(8+2FRC), gamut sRGB 100% typ,95% min
Use: sRGBical Equipment,Car and so on
Compatible part number:NE153QDM-NZ1,NE153QDM-NY1
Item Code：NE153QDM-NZ1
Share this:
Sale Price：$45
  • Description
  • Download
NE153QDM-NZ1 NEW 15.3''IPS QHD 2560*1600 240HZ Laptop LCD Screen Panel

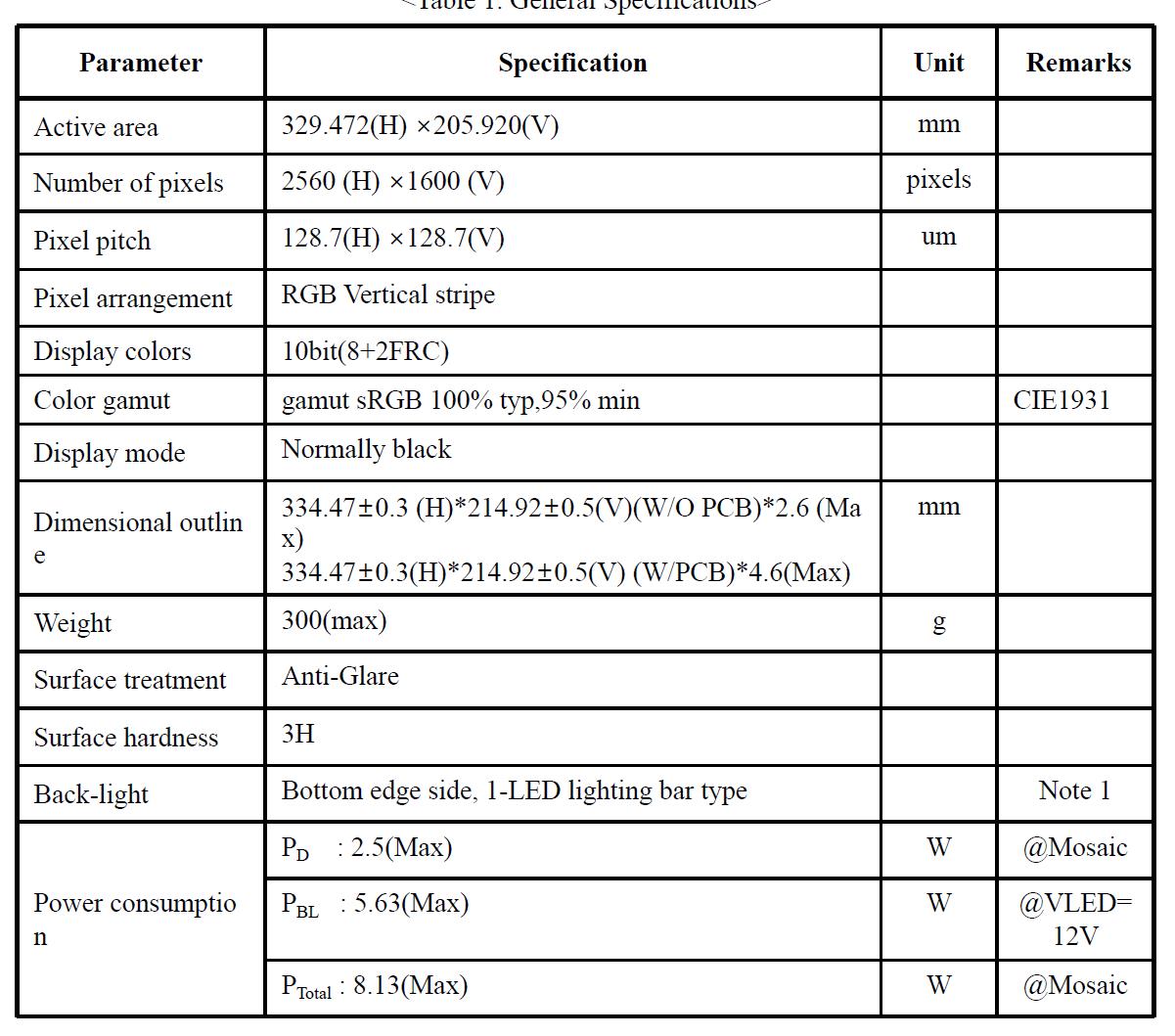

NE153QDM-NZ1 is a color active matrix TFT LCD module using Oxide TFT's (Thin Film Transistors)
as an active switching devices. This module has a 15.3 inch diagonally measured active area with Full-
HD resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN,
BLUE dots which are arranged in vertical stripe and this module can display 10bit(8+2FRC) colors and
color gamut sRGB 100% typ,95% min. The TFT-LCD panel used for this module is a low reflection an
d higher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light
driving is built in this model.
All input signals are eDP1.4 interface compatible.

  •  4 lane eDP interface with 8.1Gbps link rates
  • Thin and light weight, Low Blue Light
  • 10bit(8+2FRC) color depth, color gamut sRGB 100%
  •  Single LED lighting bar (Bottom side/Horizontal Direction)
  •  Data enable signal mode
  • Side mounting frame
  • Green product (RoHS & Halogen free product)
  • On board LED driving circuit
  • Low driving voltage and low power consumption
  • On board EDID chip
  • DPCD Version 1.4
  • Adjust backlight brightness with DC mode
