  • NE153QDM-NY1 NEW 15.3''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel
  • NE153QDM-NY1 NEW 15.3''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

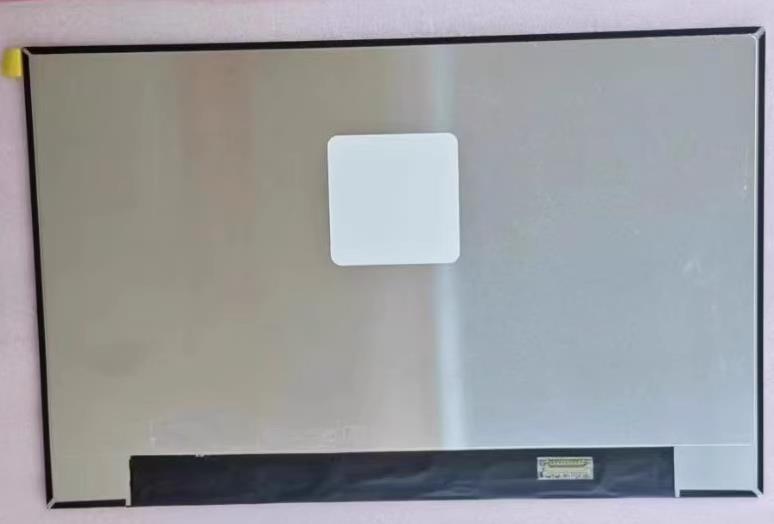

NE153QDM-NY1 NEW 15.3''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

NE53QDM-NY1 NEW 15.3''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

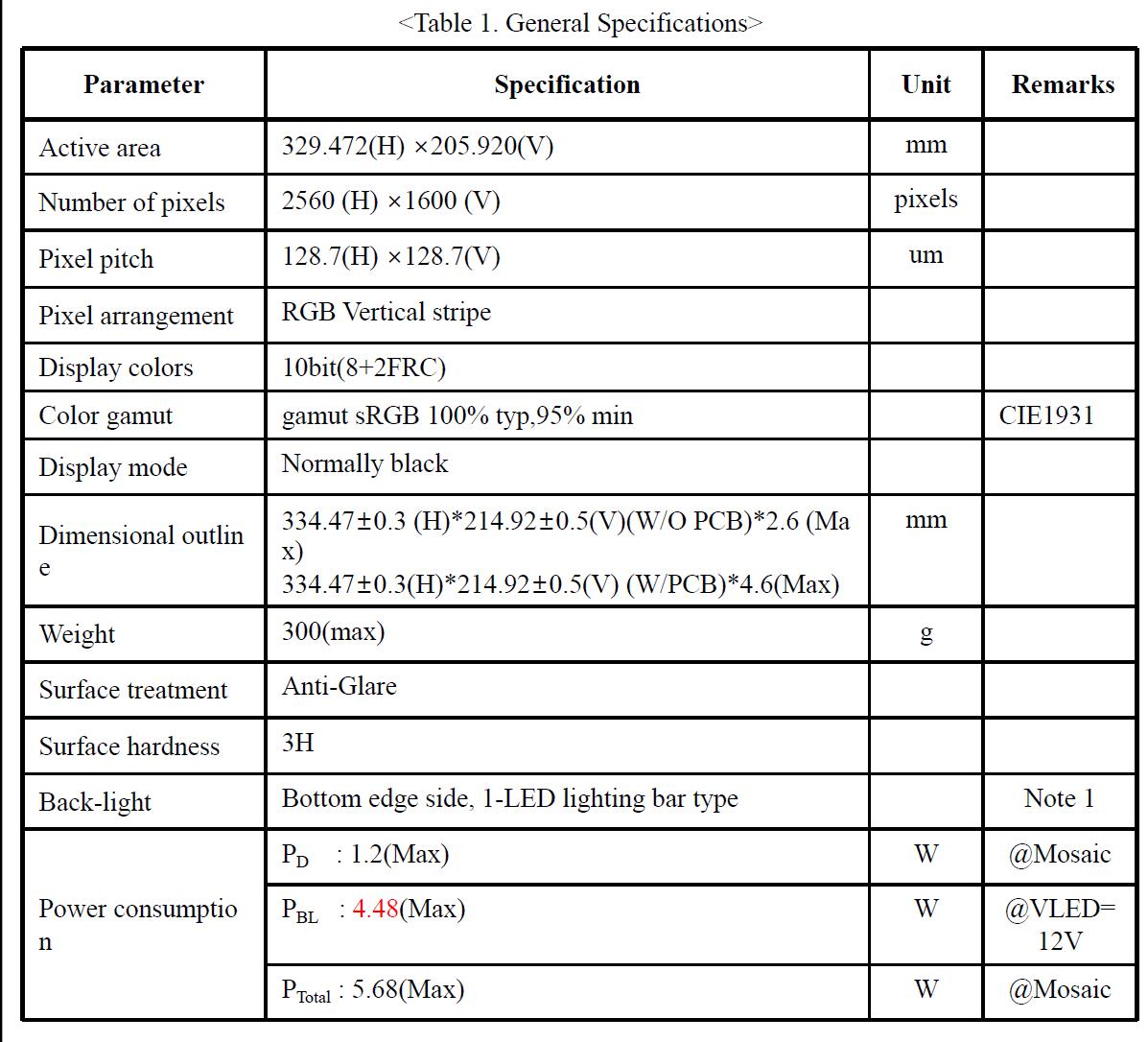

Size: 15.3inches(called 15'' too)

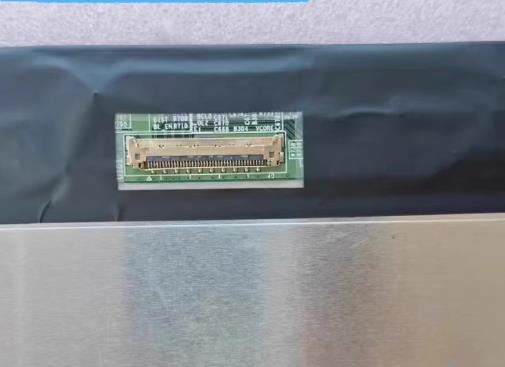

Connector Dater: 40pins EDP Conector
Resolution: 2560*1600QHD
Surface: Matte
Outline Size: 3334.47±0.3 (H)*214.92±0.5(V)(W/O PCB)*2.6 (Max)
334.47±0.3(H)*214.92±0.5(V) (W/PCB)*4.6(Max)
Display Area: 329.472(H) ×205.920(V)
Contrast Ratio: 1200:1 (Typ.) (TM)
Brightness: 400cd/m2 (Typ.)
Color: 10bit(8+2FRC), gamut sRGB 100% typ,95% min
Use: sRGBical Equipment,Car and so on
Compatible part number:NE153QDM-NZ1,NE153QDM-NY1
Item Code：NE153QDM-NY1
Share this:
Sale Price：$45
  • Description
  • Download
NE153QDM-NY1 NEW 15.3''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

NE153QDM-NY1 is a color active matrix TFT LCD module using Oxide TFT's (Thin Film Transistors)
as an active switching devices. This module has a 15.3 inch diagonally measured active area with QHD
resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN, BL
UE dots which are arranged in vertical stripe and this module can display 10bit(8+2FRC) colors and col
or gamut sRGB 100% typ,95% min. The TFT-LCD panel used for this module is a low reflection and hi
gher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light driv
ing is built in this model.
All input signals are eDP1.4 interface compatible.

  •  4 lane eDP interface with 5.4Gbps link rates
  • Thin and light weight, Low Blue Light
  • 10bit(8+2FRC) color depth, color gamut sRGB 100%
  •  Single LED lighting bar (Bottom side/Horizontal Direction)
  •  Data enable signal mode
  • Side mounting frame
  • Green product (RoHS & Halogen free product)
  • On board LED driving circuit
  • Low driving voltage and low power consumption
  • On board EDID chip
  • DPCD Version 1.4
  • Adjust backlight brightness with DC mode
