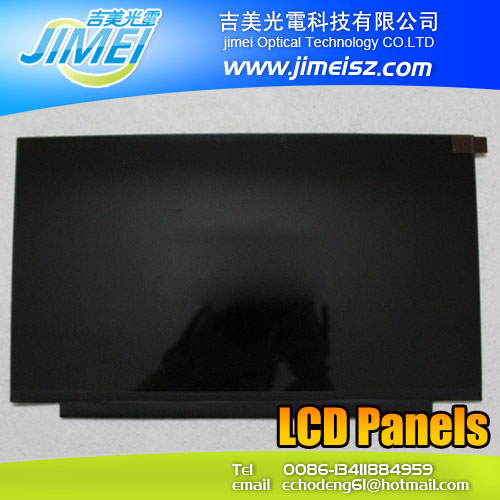

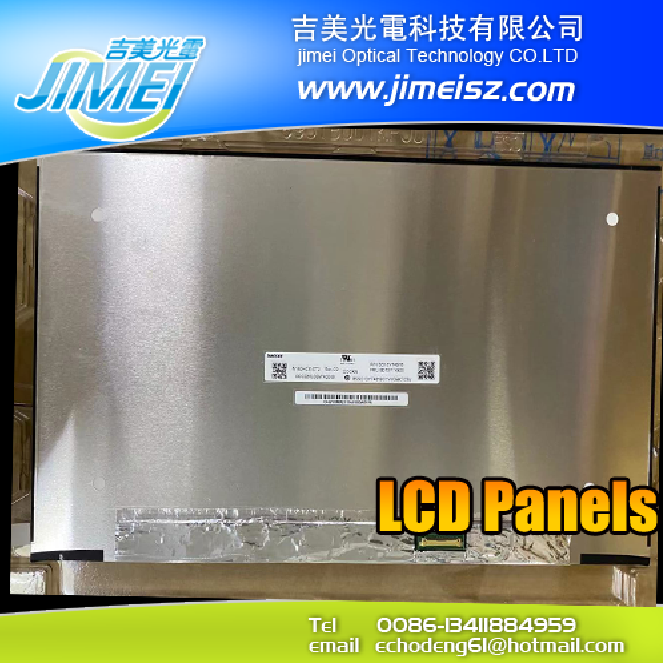

NE160QDM-NZ7(Product Code: BOE0BC9)

is a 16.0 inch diagonal Oxide TFT-LCD display screen product from BOE,

with a built-in WLED backlight, With LED Driver, without touch screen.

On the basis of latest version datasheet V8.0_Rev.P2 which was released out on 12 15 2022,

NE160QDM-NZ7 supports display 2560(RGB)×1600 (WQXGA)

with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm,

outline size of 349.68(W)×235.42(H)×2.3(D) mm,

with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.),

shape stype of Slim (PCBA Flat, T≤3.2mm).

As a ADS, Normally Black, Transmissive LCM product,

NE160QDM-NZ7 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio,

89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle,

best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot,

thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3).

This product adopted 11S8P WLED as it's backlight systerm

which was placed as Edge light type (Bottom side) and have a working life time of 15K hours,With LED Driver.

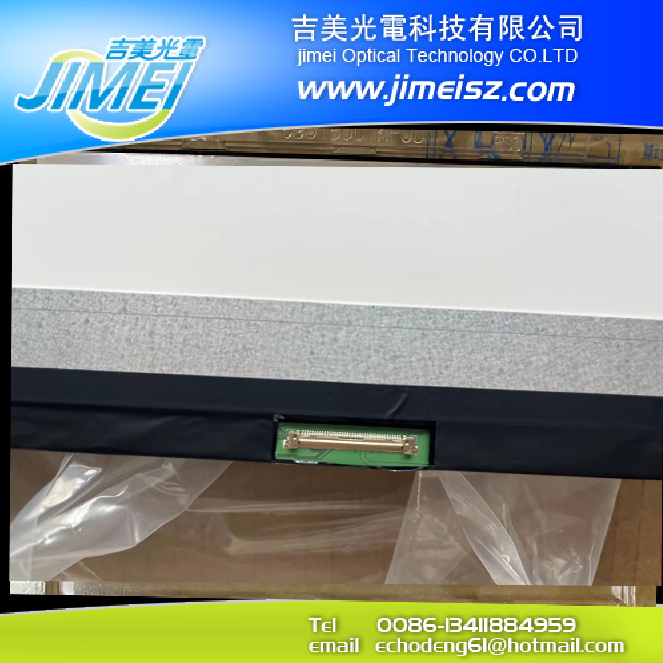

NE160QDM-NZ7 utilizes eDP (4 Lanes) as it's signal inputting systerm,

which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).

It's typical vertical frame rate (Fv) is 165Hz
