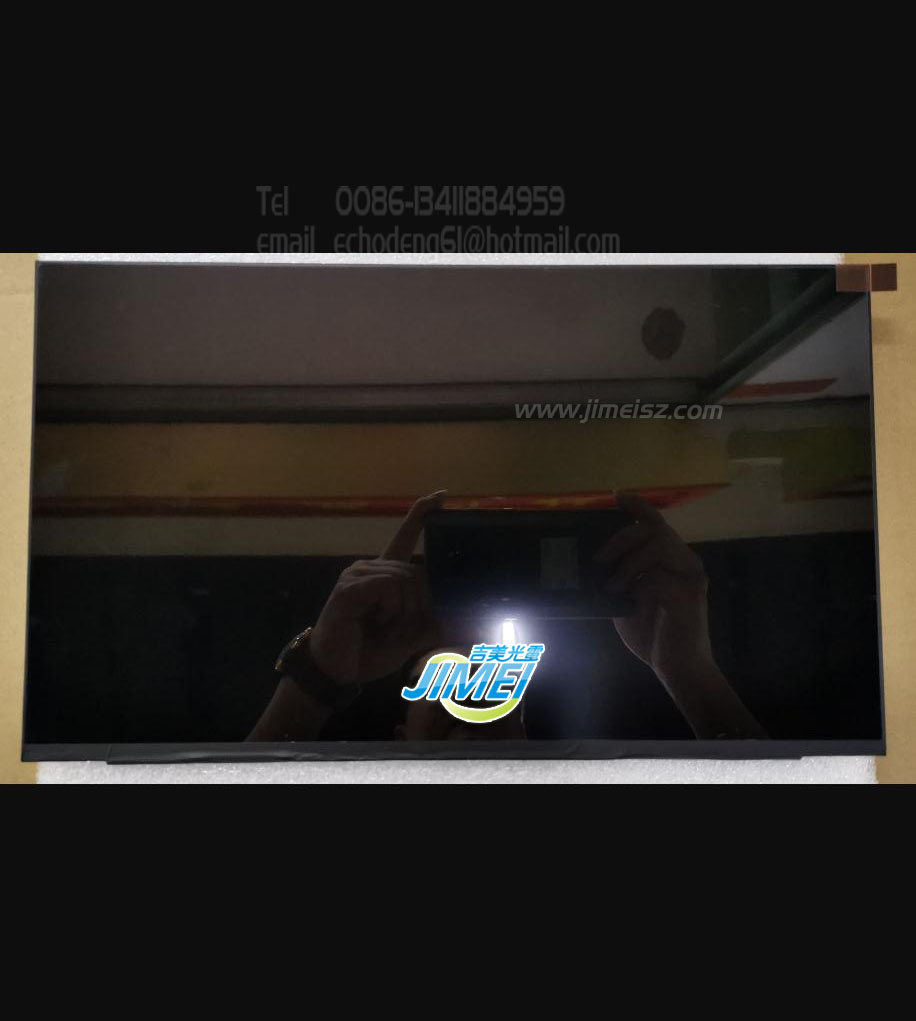

NE160QDM-NYG NEW 16''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

NE160QDM-NYJ NEW 16''IPS QHD 2560*1600 165HZ Laptop LCD Screen Panel
Size: 16inches
Connector Dater: 40pins EDP Conector
Resolution: 2560*1600QHD
Surface: Matte
Outline Size: 349.68(W)×224.42(H)×4.6(D) mm
Display Area: 344.678(W)×215.424(H) mm
Contrast Ratio: 1200:1 (Typ.) (TM)
Brightness: 400 cd/m2 (Typ.)
Color: 16.8M 100% sRGB
Use: Laptops,Notebooks, Equipment,Car and so on
Compatible part number:NE160QDM-NZ1 ,NE160QDM-NZ8,
Item Code：NE160QDM-NYG
Share this:
Sale Price：$45
  • Description
  • Download
NE160QDM-NYG NEW 16''IPS QHD 2560*1600 120HZ Laptop LCD Screen Panel

  • ? 4 lane eDP interface with 5.4Gbps link rates w/o DSC
  • ? Thin and light weight, Low Blue Light
  • ? 16.8M(8bit+2FRC) color depth, color gamut sRGB100%
  • ? Single LED lighting bar (Bottom side/Horizontal Direction)
  • ? Data enable signal mode
  • ? Side mounting frame
  • ? Green product (RoHS & Halogen free product)
  • ? On board LED driving circuit
  • ? Low driving voltage and low power consumption
  • ? On board EDID chip
  • ? DPCD Version 1.4
  • ? Adjust backlight brightness with DC mode
  • ? Function：DC Dimming

NE160QDM-NYG V18.0 is a color active matrix TFT LCD module using Oxide TFT's

(Thin Film Transistors)

as an active switching devices.

This module has a 16 inch diagonally measured active area with
WQXGA resolutions (2560 horizontal by 1600 vertical pixel array).

Each pixel is divided into RED, GREEN, BLUE dots

which are arranged in vertical stripe and this module can display 16.7M(8bit) colors

and color gamut sRGB 100%.

The TFT-LCD panel used for this module is a low reflection and higher color type.

Therefore, this module is suitable for Notebook PC.

The LED driver for back-light driving is built in this model.


All input signals are eDP1.4 interface compatible.
