144HZ NV156FHM-NY4 15.6IPS 72%NTSC 1920*1080 FHD Laptop LCD LED Display Screen Panel Notebook TFT LED Module

144HZ NV156FHM-NY4 15.6IPS 72%NTSC 1920*1080 FHD Laptop LCD LED Display Screen Panel Notebook TFT LED Module
Size: 15.6inches
Connector Dater: 30pins EDP Conector
Resolution: 1920*1080 FHD
Surface: Matte
Contrast Ratio: 1200 : 1 (Typ.) (TM)
Outline Size: 359.5×223.8 mm (H×V)
Display Area: 344.16×193.59 mm (H×V)
Brightness: 300 cd/m2 (Typ.)
Refresh Rate: 144HZ
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Use: For laptop,Machine,Madical Equipment,Car and so on
Compatible part number:LTN156HL02-001，LTN156HL02-002，LTN156HL06，LTN156HL07，LTN156HL08，LTN156HL09,LTN156HL10，LTN156HL11，LP156WF4-SPB1，LP156WF4-SPK1，LP156WF4-SPL1，LP156WF4-SPH1，LP156WF4-SPH3，LP156WF4,LP156WF6，LP156WF7，LP156WF6-SPB1，LP156WF6-SPL1，LP156WF6-SPK1，LP156WF6-SPM1，B156HAN01.1，B156HAN01.0，B156HAN01.2，B156HTN03.5，B156HTN03.6，B156HTN03.8，B156HTN03.7，B156HTN03.9，N156HEGE-EAL,N156HGE-EAB,N156HGE-EA1，N156HGE-EA2，N156HGE-EA3，N156HGE-EAC,NV156FHM-N31，NV156FHM-N32，NV156FHM-N33，NV156FHM-N41，NV156FHM-N42,NV156FHM-N43
Item Code：NV156FHM-NY4
Share this:
Sale Price：$75
  • Description
  • Download
144HZ NV156FHM-NY4 15.6IPS 72%NTSC 1920*1080 FHD Laptop LCD LED Display Screen Panel Notebook TFT LED Module

NV156FHM-NY4 (Product Code: BOE07B2) is a 15.6 inch diagonal a-Si TFT-LCD display screen product,
with an incorporated WLED lighting system, With LED Driver,
without touch screen.

Based on datasheet with version of V8.0_Rev.P0 which was released out on 8 23 2019,
NV156FHM-NY4 supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×214.75(H)×2.6(D) mm,
with surface treament of Antiglare, Hard coating (3H), net weight of 280g (Max.),
shape stype of Slim (PCBA Flat, T≤3.2mm).

As a HADS, Normally Black, Transmissive LCM product,
NV156FHM-NY4 can provides 300 cd/m² display brightness
1000:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry ,
and response time of 9 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined
with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors,
also with performance of color gamut 100% (sRGB).

This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours,With LED Driver.

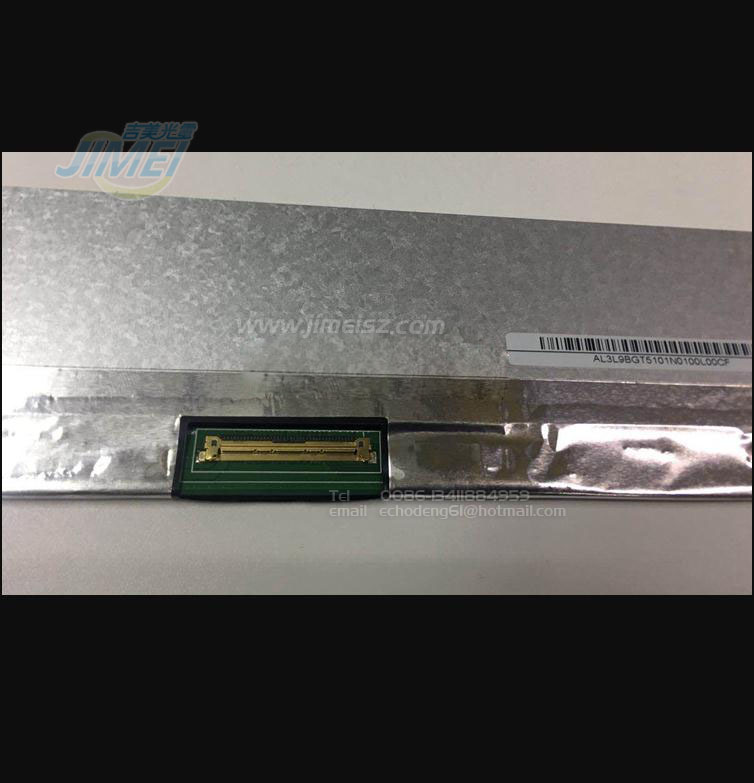

NV156FHM-NY4 utilizes eDP (2 Lanes) as it's signal inputting systerm,
which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).

It's typical vertical frame rate (Fv) is 144Hz.

For more latest product detail of NV156FHM-NY4
We strongly recommend that you should refer to datasheet listed on Jimeihk.com or contact with BOE or it's distributor.
