NV156FHM-N4M 15.6IPS FHD 1920*1080 FHD IPS Inverter bent Laptop LCD LED Display Screen Notebook TFT Panel for Monitor

NV156FHM-N4M 15.6IPS FHD 1920*1080 FHD IPS Inverter bent Laptop LCD LED Display Screen Notebook TFT Panel for Monitor
Size: 15.6inches

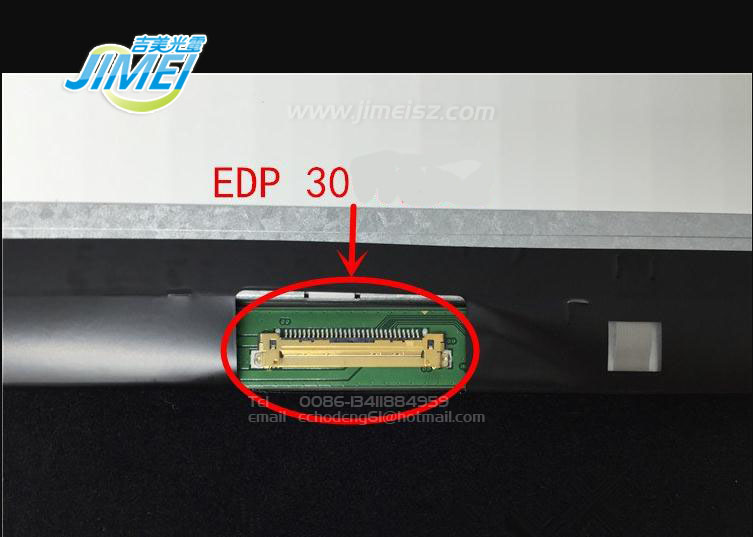

Connector Dater: 30pins EDP Conector
Resolution: 1920*1080 FHD
Surface: Matte
Outline Size: 350.46(W)×206.25(H)×4.6(D) mm
Display Area: 344.16(W)×193.59(H) mm
Contrast Ratio: 800:1 (Typ.) (TM)
Brightness: 300 cd/m2 (Typ.)
Use: For laptop,Machine,Madical Equipment,Car and so on
Compatible part number:LTN156HL02-001，LTN156HL02-002，LTN156HL06，LTN156HL07，LTN156HL08，LTN156HL09,LTN156HL10，LTN156HL11，LP156WF4-SPB1，LP156WF4-SPK1，LP156WF4-SPL1，LP156WF4-SPH1，LP156WF4-SPH3，LP156WF4,LP156WF6，LP156WF7，LP156WF6-SPB1，LP156WF6-SPL1，LP156WF6-SPK1，LP156WF6-SPM1，B156HAN01.1，B156HAN01.0，B156HAN01.2，B156HTN03.5，B156HTN03.6，B156HTN03.8，B156HTN03.7，B156HTN03.9，N156HEGE-EAL,N156HGE-EAB,N156HGE-EA1，N156HGE-EA2，N156HGE-EA3，N156HGE-EAC,NV156FHM-N31，NV156FHM-N32，NV156FHM-N33，NV156FHM-N41，NV156FHM-N42,NV156FHM-N43
Item Code：NV156FHM-N4M
Share this:
Sale Price：$35
  • Description
  • Download
NV156FHM-N4M 15.6IPS FHD 1920*1080 FHD IPS Inverter bent Laptop LCD LED Display Screen Notebook TFT Panel for Monitor

NV156FHM-N4M (Product Code: BOE081A) is a 15.6 inch diagonal a-Si TFT-LCD display screen product from BOE,
with a built-in WLED backlight,
With LED Driver, without touch screen.

On the basis of latest version datasheet Rev.0 which was released out on 2 13 2019,
NV156FHM-N4M supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×205.69(H)×5.4(D) mm, with surface treament of Antiglare,
Hard coating (3H), net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm).

As a ADS, Normally Black, Transmissive LCM product,
NV156FHM-N4M can provides 300 cd/m² display brightness
700:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle,
best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot,
thus presenting a palette of 16.2M colors, also with performance of color gamut 72% (NTSC).

This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours, With LED Driver.

NV156FHM-N4M utilizes eDP (2 Lanes) as it's signal inputting systerm,
which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

It's typical vertical frame rate (Fv) is 60Hz.

For more latest product detail of NV156FHM-N4M we strongly recommend that you should refer to datasheet listed on Jimeihk.com or contact with BOE.
