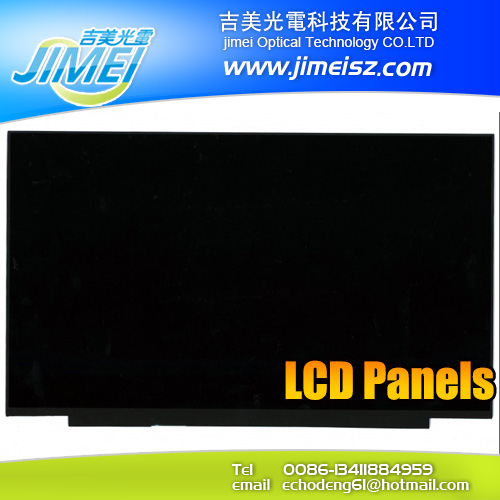

NV156FHM-N4R (Product Code: BOE08CF) released by BOE Technology Group Co., Ltd. (hereafter called BOE).
According to datasheet with version of Rev.0 which was released out on 3 31 2020,
NV156FHM-N4R supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×216.68(H)×3.2(D) mm,
with surface treament of Antiglare,

Hard coating (3H), net weight of 380g (Max.),
shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS,

Normally Black, Transmissive LCM product,
NV156FHM-N4R can provides 500 cd/m² display brightness
800:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle,
best view direction on Symmetry ,
and response time of 16 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot,
thus presenting a palette of 16.2M colors,
also with performance of color gamut 99% (DCI-P3).

This product adopted 9S8P WLED as it's backlight systerm
which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours,
With LED Driver.

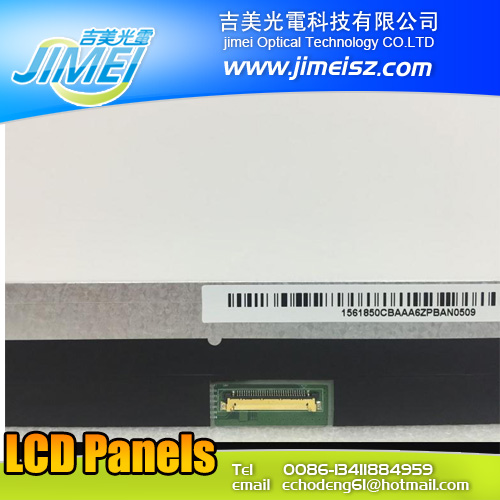

NV156FHM-N4R utilizes eDP (2 Lanes) as it's signal inputting systerm,
which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

It's typical vertical frame rate (Fv) is 60Hz.

For more latest product detail of NV156FHM-N4R
We strongly recommend that you should refer to datasheet listed on Jimeisz.com or contact with BOE or it's distributor.
