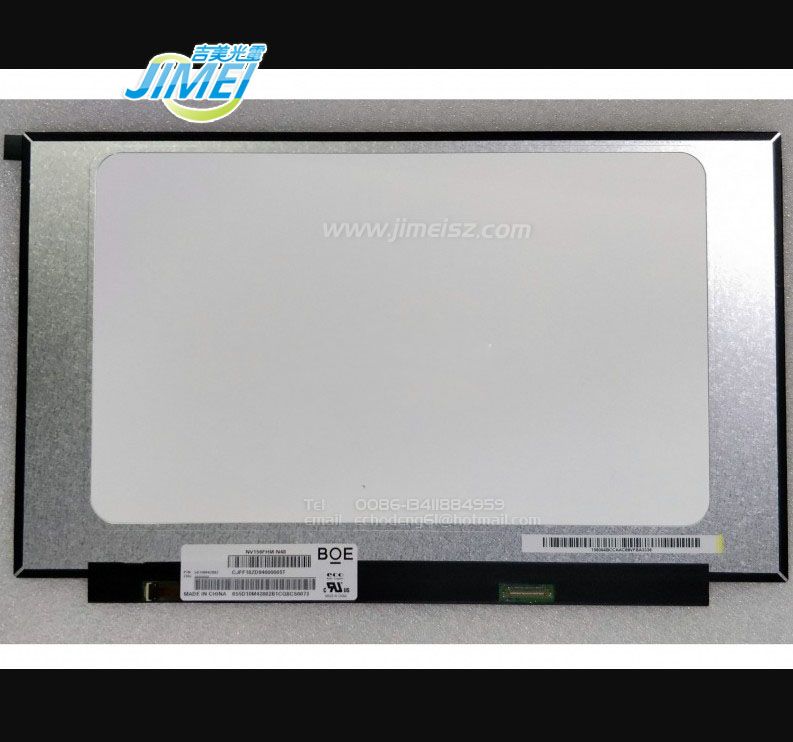

NV156FHM-N48 NEW 15.6IPS FHD 1920*1080 FHD IPS LED Laptop LCD LED Display Screen Panel Notebook TFT LED PANEL for Monitor

NV156FHM-N48 (Product Code: BOE0700) released by BOE Technology Group Co., Ltd. (hereafter called BOE).

According to datasheet with version of Rev.P1 which was released out on 1 6 2016,
NV156FHM-N48 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×216.25(H)×3.2(D) mm,
with surface treament of Antiglare, net weight of 360g (Max.),
shape stype of Slim (PCBA Flat, T≤3.2mm).

As a ADS, Normally Black, Transmissive LCM product,
NV156FHM-N48 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry ,
and response time of 30 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot,
thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC).

This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours,With LED Driver.

NV156FHM-N48 utilizes eDP (2 Lanes) as it's signal inputting systerm,

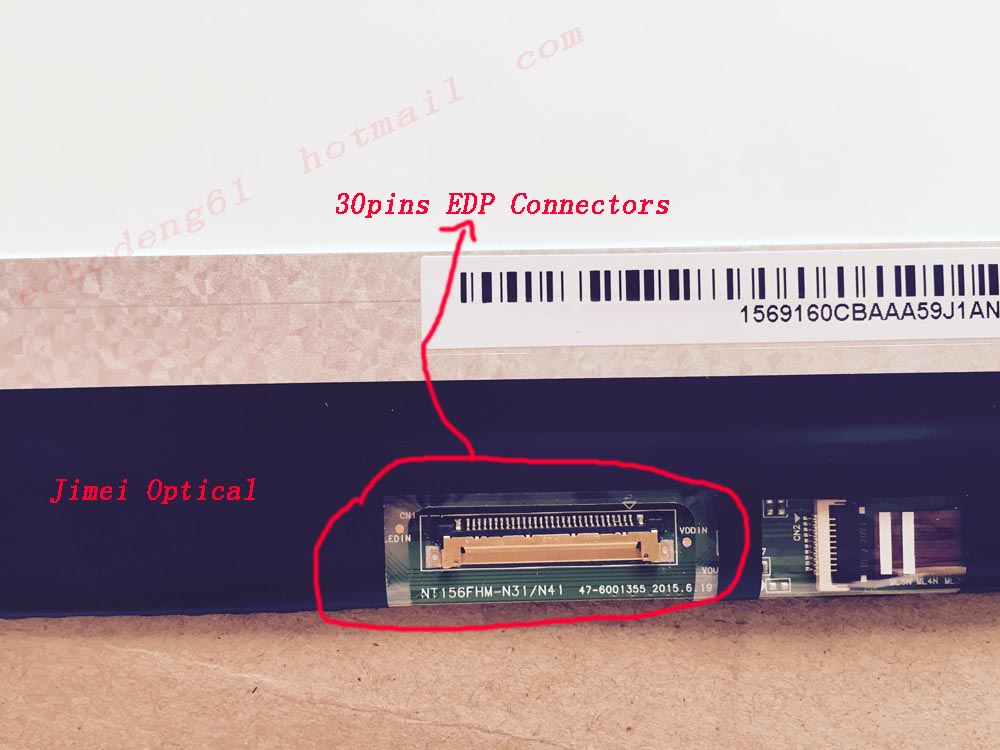

which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
?It's typical vertical frame rate (Fv) is 60Hz.
