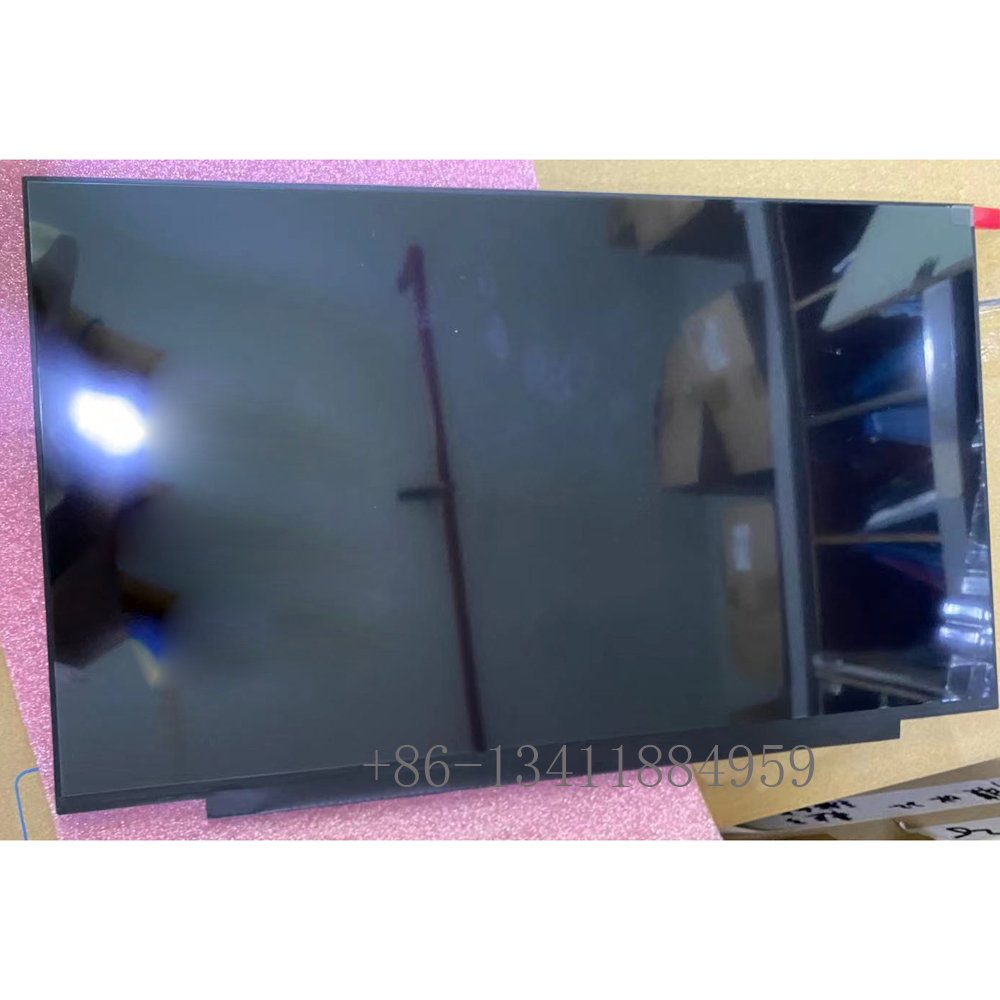

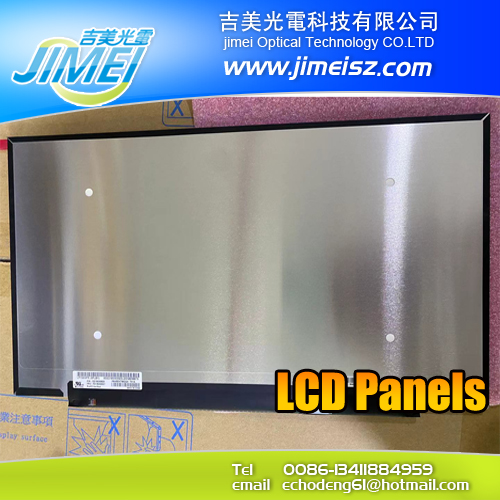

LP160WU3-SPF1 NEW 16''IPS FHD 1920*1200 inverter Bent Laptop LCD Screen Panel

LP160WU3-SPF1 NEW 16''IPS FHD 1920*1200 inverter Bent Laptop LCD Screen Panel
Size: 16inches

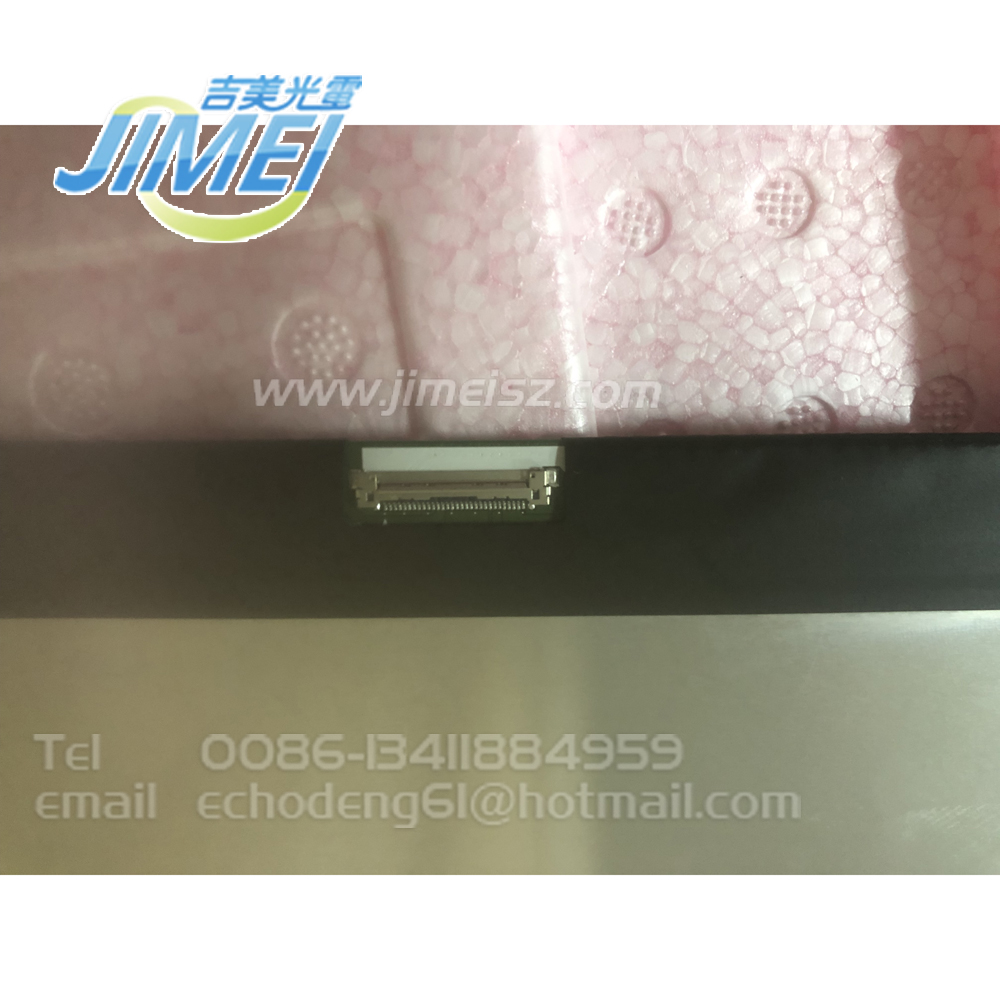

Connector Dater: 30pins EDP Conector
Resolution: 1920*1200 FHD
Surface: Matte
Outline Size: 349.68 (H, Typ.) ×225.32(V, Typ.) ×3.00 (D, Max.) [mm] (W/O PCBA)
Display Area: 344.678(W)×215.424(H) mm
Contrast Ratio: 1000:1 (Typ.) (TM)
Brightness: 250cd/m2 (Typ.)
Use: For laptop,Machine,Madical Equipment,Car and so on
Compatible part number:N160JCA-EEL,N160JCA-EEK
Item Code：LP160WU3-SPF1
Share this:
Sale Price：$45
  • Description
  • Download
LP160WU3-SPB1 NEW 16''IPS FHD 1920*1200  inverter Bent Laptop LCD Screen Panel

The LP160WU3 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system.

The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally Black mode.
This TFT-LCD has 16.0 inches diagonally measured active display area with WUXGA resolution (1920 horizontal by 1200 vertical pixel array).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.

Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of 16,777,216 colors.

The LP160WU3 has been designed to apply the interface method that enables low power, high speed, low EMI.

The LP160WU3 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important.

In combination with the vertical arrangement of the sub-pixels,
? the LP160WU3 characteristics provide an excellent flat display for office automation products such as Notebook PC


the LP160WU3 characteristics provide an excellent flat display for office automation products such as Notebook PC.
