BOE NNE140QDM-N81 14'' QHD 2560*1600 2.5K Narrow IPS LED transparent 120HZ led display screen Laptop LED LCD Display Notebook LED Screen Panel

BOE NNE140QDM-N81 14'' QHD 2560*1600 2.5K Narrow IPS LED transparent 120HZ led display screen Laptop LED LCD Display Notebook LED Screen Panel
Size: 14inches

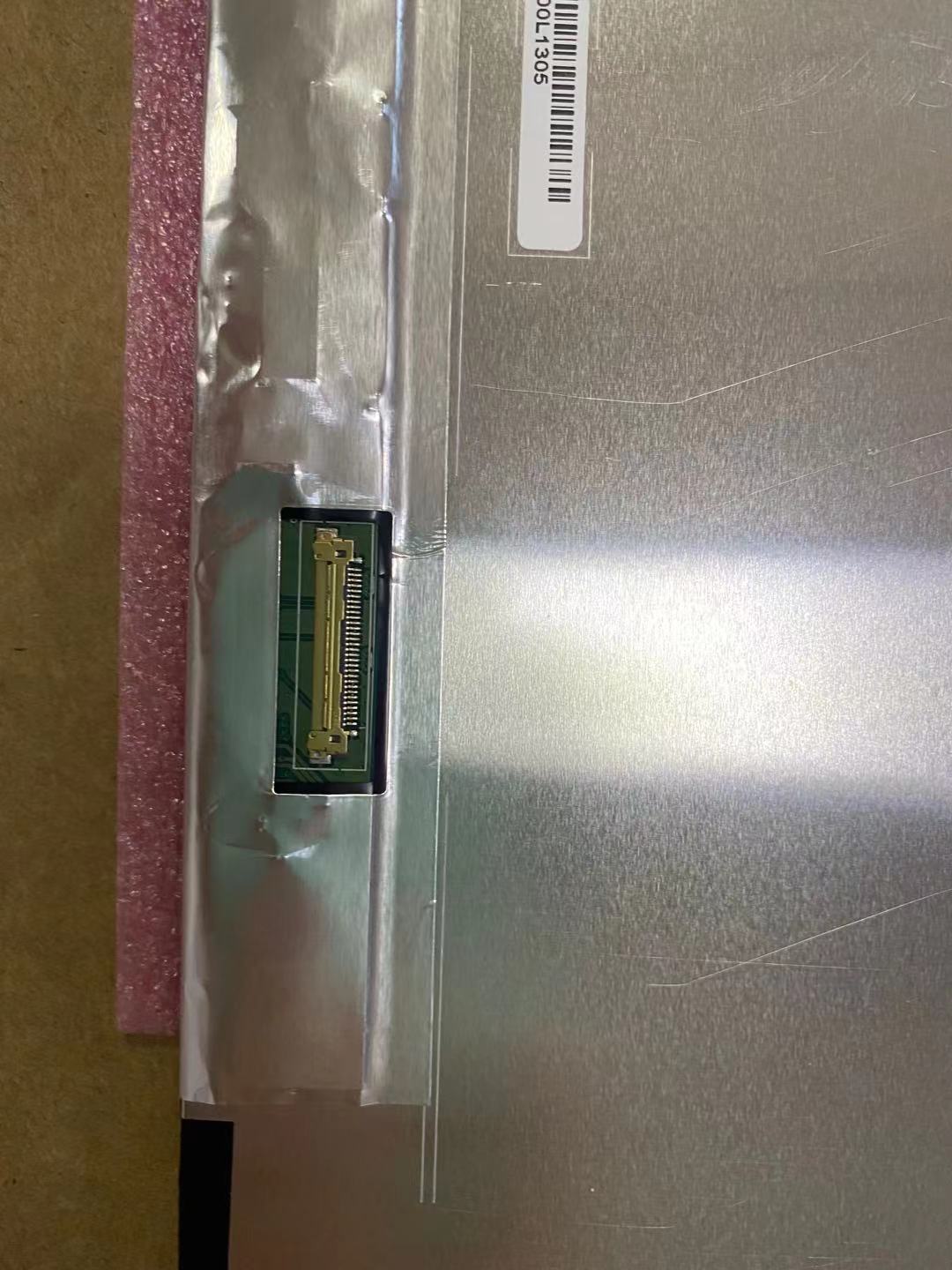

Connector Dater: 40pins EDP Conector
Resolution: 2560*1600 QHD 16:10
Surface: Matte
Contrast Ratio: 1200 : 1 (Typ.) (TM)
Outline Size: 306.59×206.23mm(H×V)
Display Area: 301.594 (H) ×188.496 (V)
Brightness: 500 cd/m2 (Typ.)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Refresh Rate: 120HZ
Use: For laptop,Machine,Madical Equipment,Car and so on
Item Code：NE140QDM-N81
Share this:
Sale Price：$35
  • Description
  • Download

BOE NNE140QDM-N81 14'' QHD 2560*1600 2.5K Narrow IPS LED transparent 120HZ led display screen Laptop LED LCD Display Notebook LED Screen Panel
NE140QDM-N81 V8.0 is a color active matrix TFT LCD module using IGZO TFT's (Thin Film Transis
tors) as an active switching devices. This module has a 14.0 inch diagonally measured active area with
WQXGA resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, G
REEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(8bit) colors
and color gamut sRGB 100%. The TFT-LCD panel used for this module is a low reflection and higher c
olor type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light driving is
built in this model.
All input signals are eDP1.4 interface compatible.


  • 4 lane eDP interface with 2.7Gbps link rates
    Thin and light weight,
    16.7M(8bit) color depth, color gamut sRGB 100%.
    Single LED lighting bar (Bottom side/Horizontal Direction)
    Data enable signal mode
    Green product (RoHS & Halogen free product)
    On board LED driving circuit
    Low driving voltage and low power consumption
    On board EDID chip
    DPCD Version 1.4
    Adjust backlight brightness with DC mode
