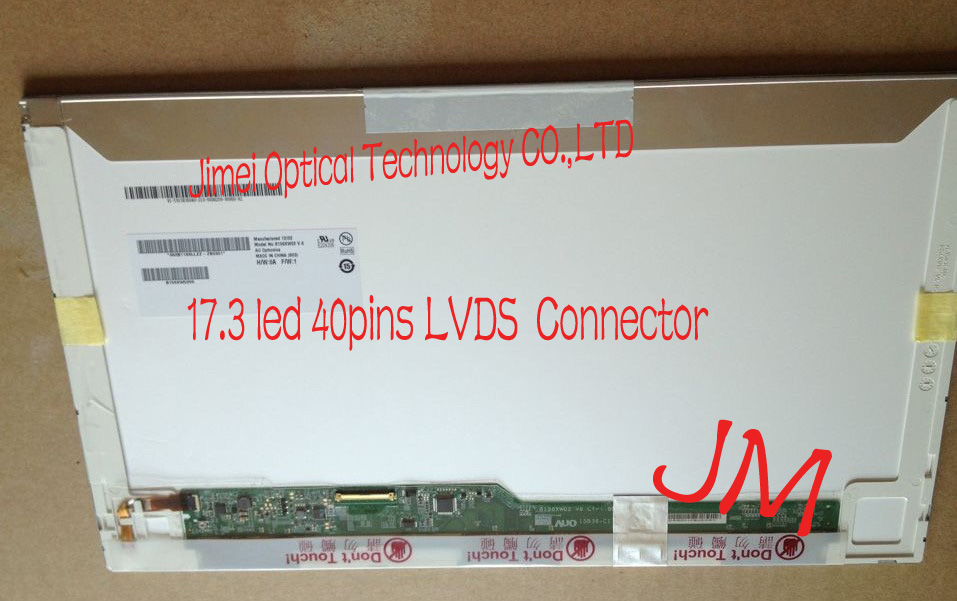

17.3'' LED Panel LG LP173WD1-TLE1 (TL)(E1)17.3'' LED LCD Screen Panel 40Pins Monitor display TFT-LCD Modules

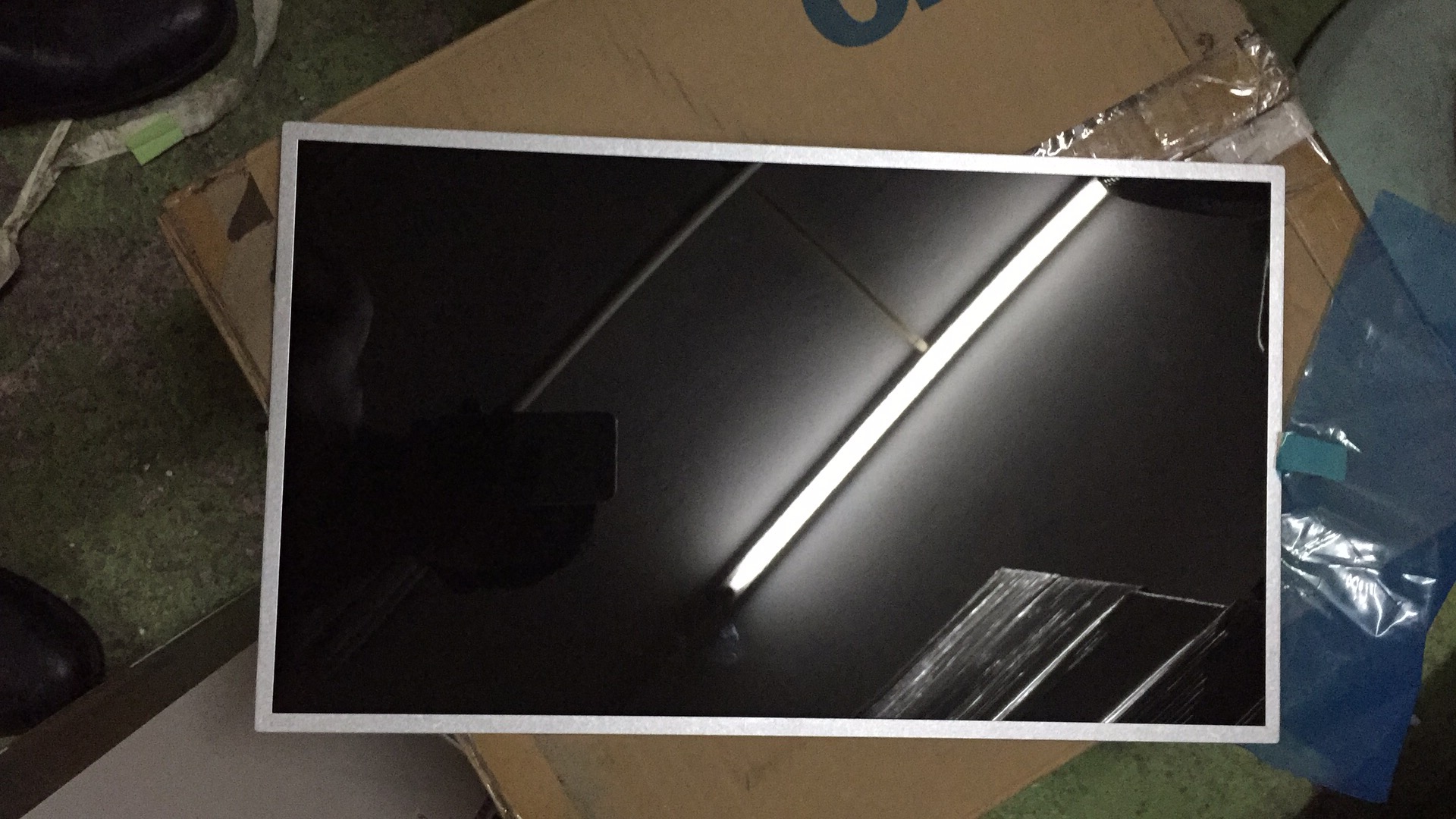

LP173WD1-TLE1 (Alias: LP173WD1 (TL)(E1)) (Product Code: LGD01CA) is a 17.3 inch diagonal a-Si TFT-LCD display screen product,
with an incorporated WLED lighting system, With LED Driver, without touch screen.
Based on datasheet with version of Ver1.0 which was released out on 2 1 2009, LP173WD1-TLE1 supports display 1600(RGB)×900 (HD+) with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.
As for mechanical detail, it features active area of 381.89(W)×214.81(H) mm, outline size of 398.1(W)×232.8(H)×6(D) mm,
viewing area size of 384.89(W)×217.81(H) mm, with surface treament of Glare (Haze 0%), net weight of 570g (Max.),
shape stype of Wedge (PCBA Bent, Depth ≥5.2mm). As a TN, Normally White, Transmissive LCM product,LP173WD1-TLE1 can provides 220 cd/m² display brightness 600:1 transimissive contrast ratio,
40/40/10/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8 (Typ.)(Tr+Td) ms.
Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (CIE1931).
This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver.

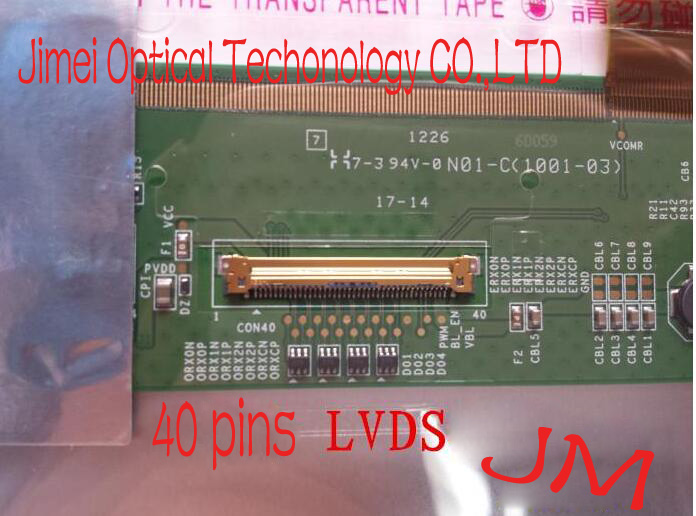

? LP173WD1-TLE1 utilizes LVDS (2 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
