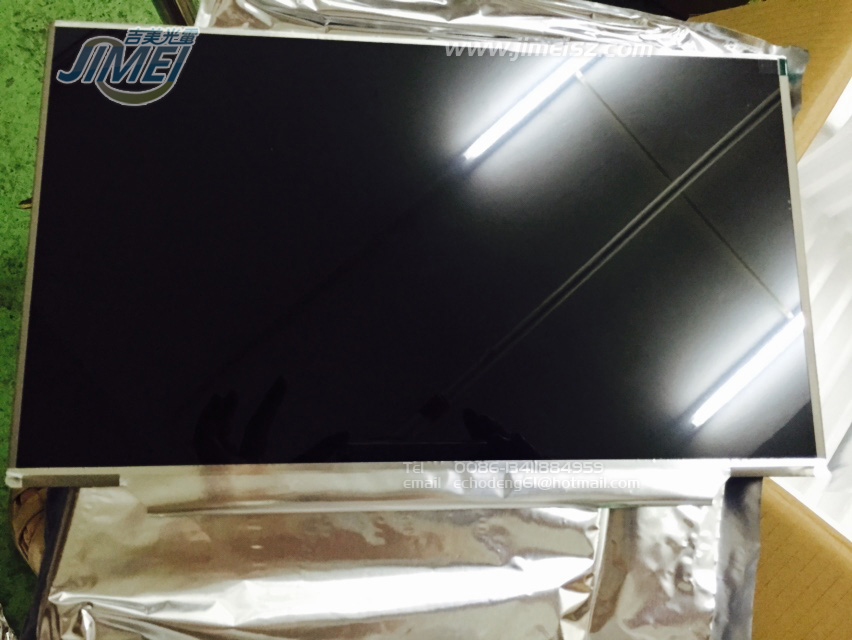

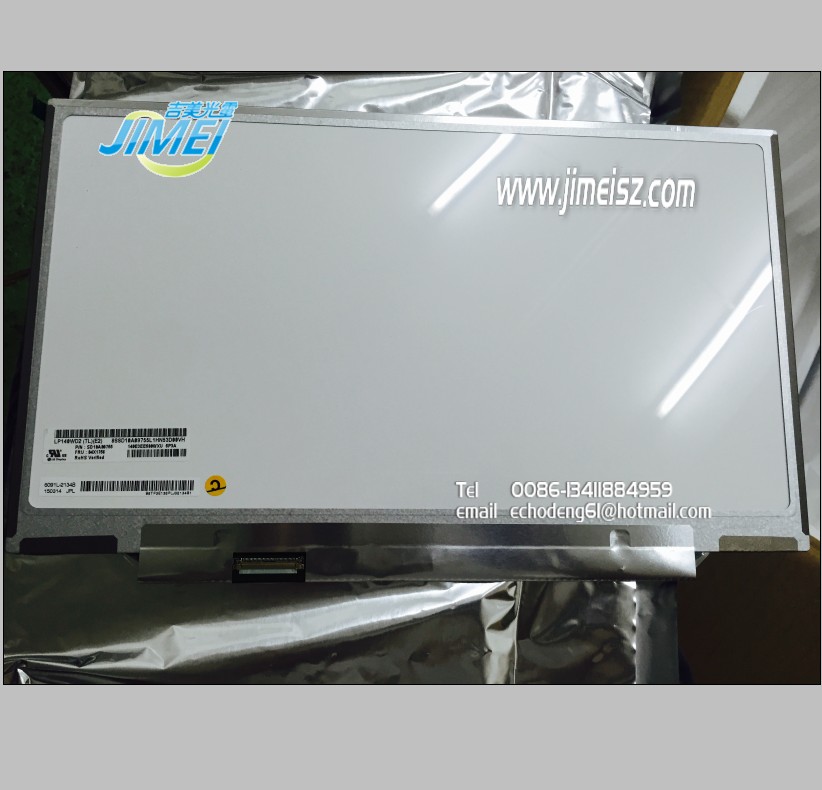

LG LP140WD2-TLE2 14'' led advertising screen 1600*900 IPS LED transparent led display screen Notebook LED Screen Panel paper thin led screen

LG LP140WD2-TLE2 14'' led advertising screen 1600*900 IPS LED transparent led display screen Notebook LED Screen Panel paper thin led screen
Size: 14inches
Connector Dater: 40pins LVDS Conector
Resolution: 1920*1080 HD+
Surface: Matte
Contrast Ratio: 800 : 1 (Typ.) (TM)
Outline Size: 320.4×205.1 mm
Display Area: 309.12(H)×173.88(V) mm
Brightness: 300 cd/m2 (Typ.)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Use: For laptop,Machine,Madical Equipment,Car and so on
Item Code：LP140WD2-TLE2
Share this:
Sale Price：$100
  • Description
  • Download

LG LP140WD2-TLE2 14'' led advertising screen 1600*900 IPS LED transparent led display screen Notebook LED Screen Panel paper thin led screen

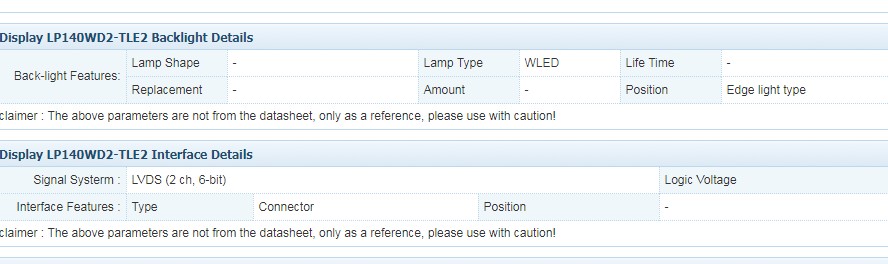

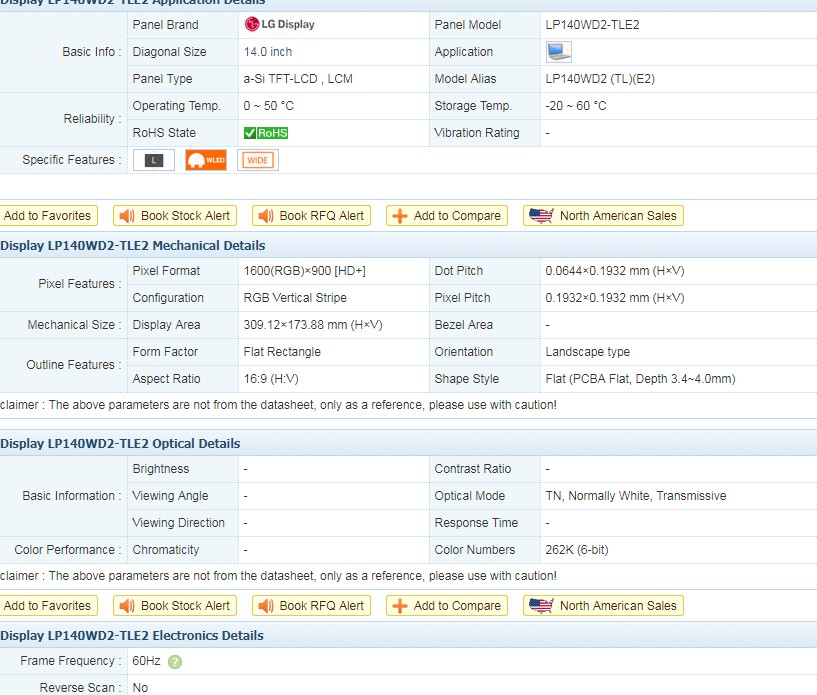

LP140WD2-TLE2 (Alias: LP140WD2 (TL)(E2)) is a 14.0 inch diagonal a-Si TFT-LCD display screen product from LG Display, with a built-in WLED backlight, without touch screen. LP140WD2-TLE2 supports display 1600(RGB)×900 (HD+) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.12(W)×173.88(H) mm, shape stype of Flat (PCBA Flat, Depth 3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, LP140WD2-TLE2 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LP140WD2-TLE2 utilizes LVDS (2 ch, 6-bit) as it's signal inputting systerm Connector. It's typical vertical frame rate (Fv) is 60Hz.
