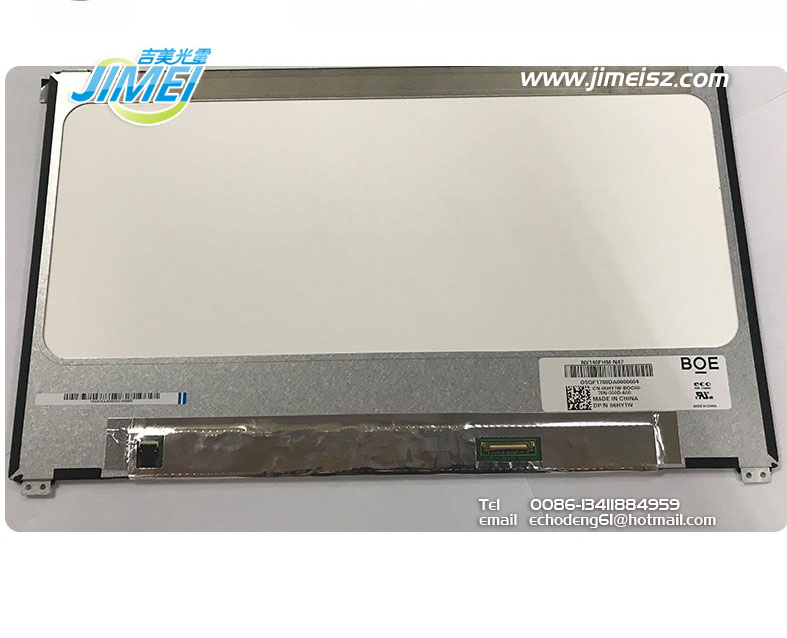

NV140FHM-N47 14'' FULL HD 1920*1080 IPS LED transparent led display Panel Laptop LED LCD Display Notebook LED Screen Price

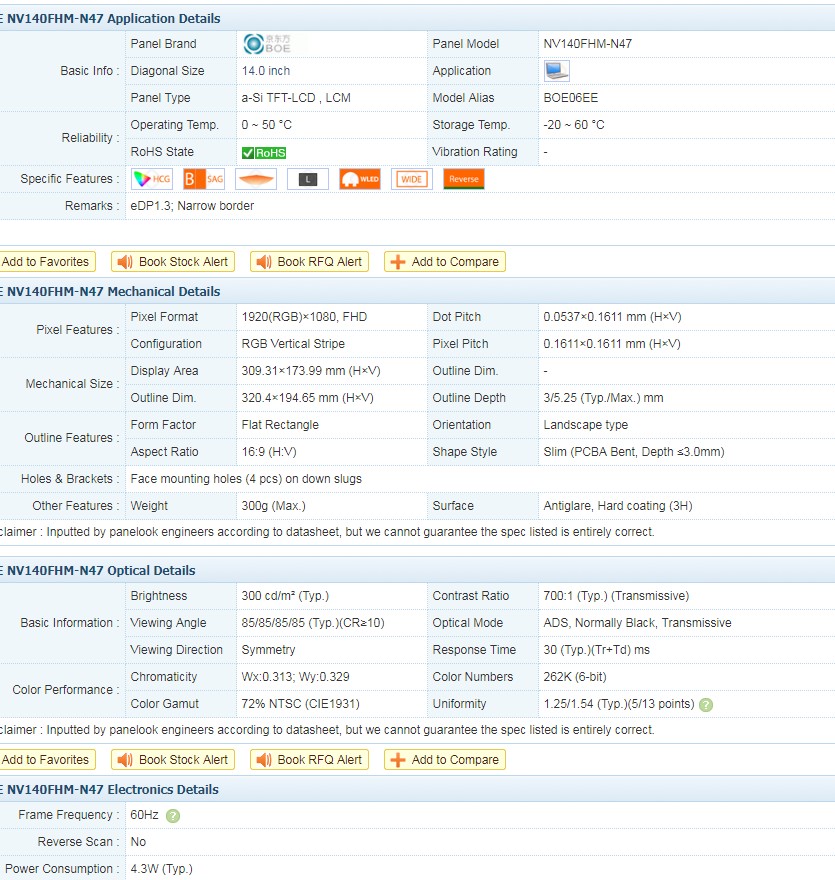

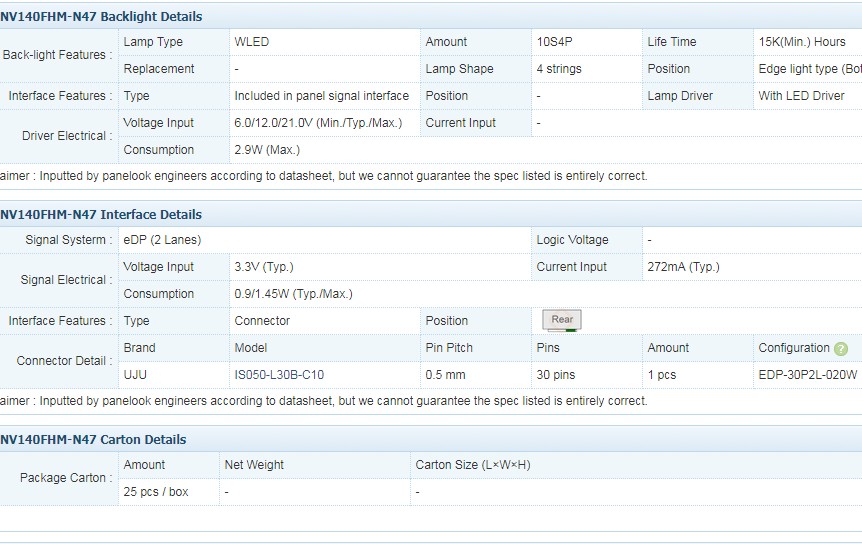

NV140FHM-N47 (Product Code: BOE06EE) released by BOE Technology Group Co., Ltd. (hereafter called BOE). According to datasheet with version of Rev.P0 which was released out on 3 15 2016, NV140FHM-N47 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 320.4(W)×194.65(H)×5.25(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Bent, Depth ≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV140FHM-N47 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (CIE1931). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140FHM-N47 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
