NV140FHM-N49 14'' FULL HD 1920*1080 IPS LED Screens transparent led display Laptop LED LCD Display Notebook LED Panel

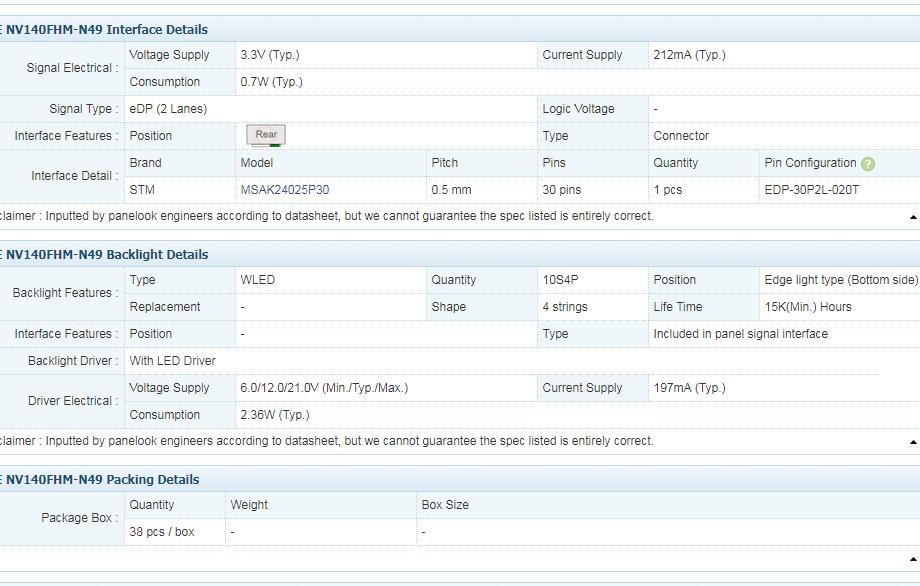

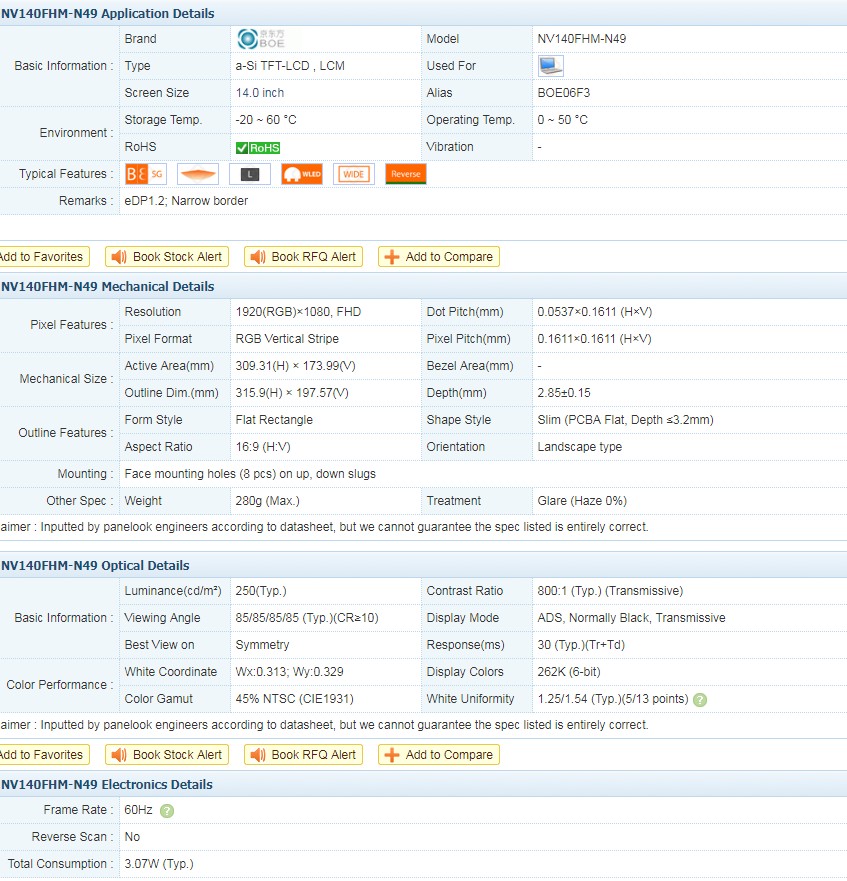

NV140FHM-N49 (Product Code: BOE06F3) released by BOE Technology Group Co., Ltd. (hereafter called BOE). According to datasheet with version of Rev.P0 which was released out on 8 4 2016, NV140FHM-N49 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.9(W)×197.57(H)×3(D) mm, with surface treament of Glare (Haze 0%), net weight of 280g (Max.), shape stype of Slim (PCBA Flat, Depth ≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140FHM-N49 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (CIE1931). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140FHM-N49 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
