NV140FHM-N32 14'' FULL HD 1920*1080 IPS LED Laptop LED LCD Display Notebook Screen Panel TFT LCD-Module NV140FHM-N32

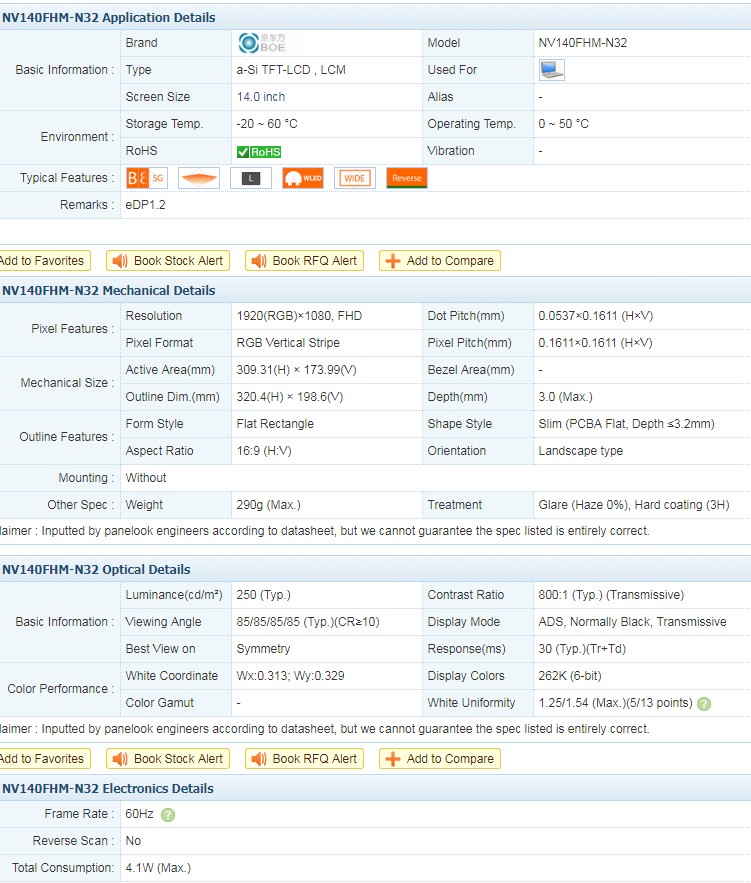

NV140FHM-N32 is a 14.0''
diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Rev.P0 which was released out on 9 25 2014, NV140FHM-N32 supports display 1920*1080
(FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 320.4(W)×198.6(H)×3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 290g (Max.), shape stype of Slim (PCBA Flat, Depth ≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140FHM-N32 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140FHM-N32 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz
