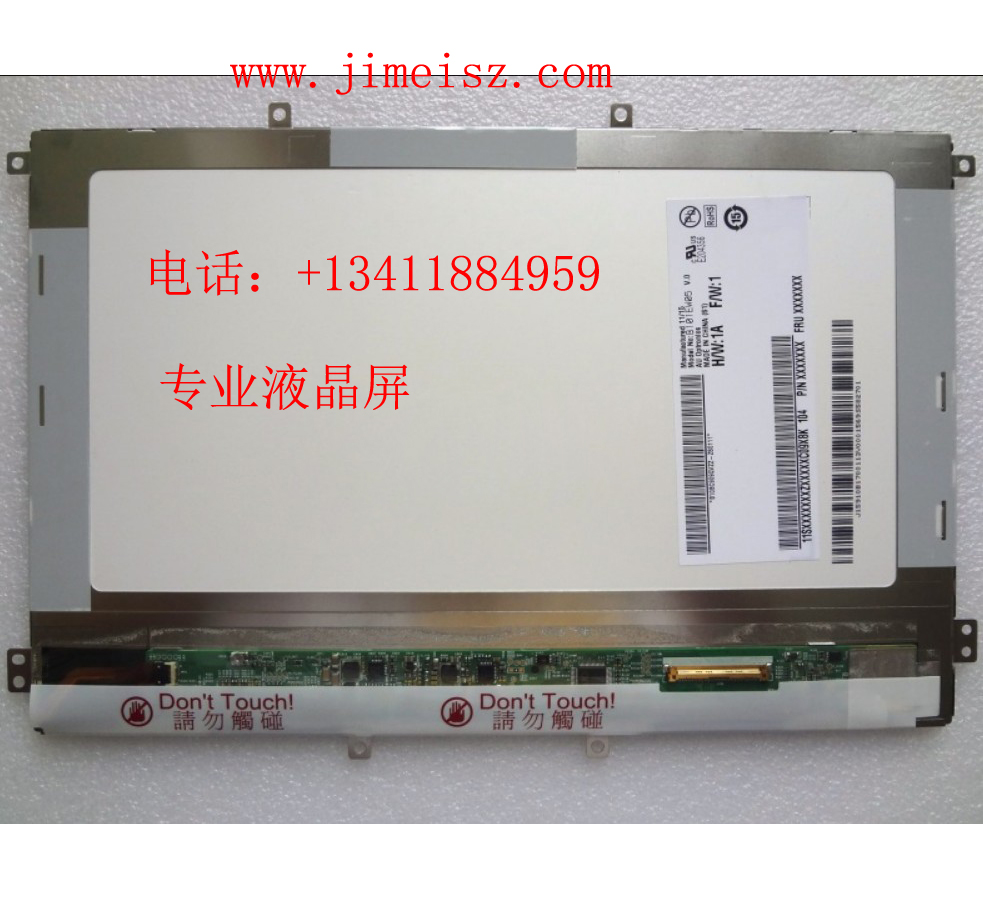

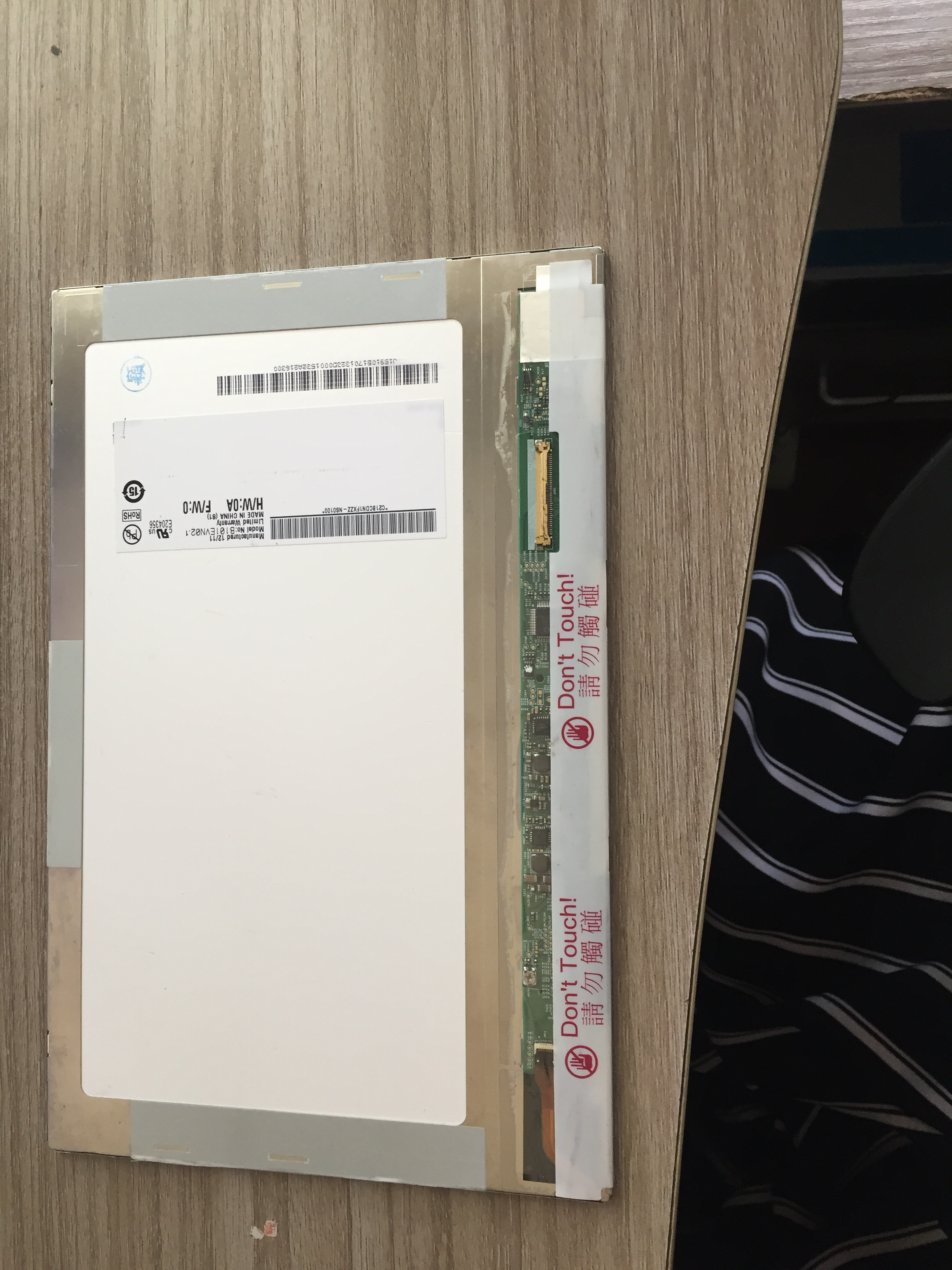

B101EW05 V0 10.1'' IPS Slim 1280*800 LED Screen Monitor LVDS Connector B101EW05 V.0 TFT-LCD-PANEL Laptop LED LCD Display screen Panel
Size: 10.1inches
Connector Dater: 40pins lvds Conector
Resolution: 1280*800 HD
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Surface: Matte
Outline Size: 359.5×223.8 mm (H×V)
Display Area: 344.16×193.59 mm (H×V)
Contrast Ratio: 800:1 (Typ.) (TM)
Brightness: 300 cd/m2 (Typ.)
Use: For laptop,Machine,Madical Equipment,Car and so on
Compatible part number:B101EW05 V.0,HSD101PWW1-H00,HSD101PWW1-H01
